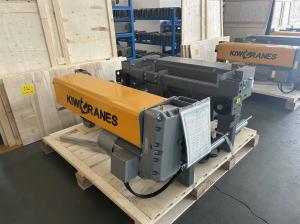

5ton 18m European style single girder wire rope hoist
| model | | VTW-S 5T |
| SWL | t | 5 |
| lifting height | m | 18 |
| lifting speed | m/min | 0.8/5.0 |
| travel speed | m/min | 5-20 |
| power in | V;HZ | 220~460V 50/60Hz |
| FEM(GB) | -- | 2m(M5) |
| lifting motor | power | KW | 1.0/6.1 |
| RPM | n/min | 420/2840 |
| insulation | -- | F |
| production | -- | IP55 |
| duration | -- | 40% |
| rated current | | 5.17/14.20 |
| lift gear ratio | -- | 67.59 |
| drum dia | mm | 190 |
| wire rope | -- | 8-8*26(WS)+IWRC |
| travel motor | power in | KW | 0.4*2 |
| RPM | n/min | 104 |
| insulation | -- | F |
| production | -- | IP55 |
| duration | -- | |
| rated current | A | 2.35 |
| wheel dia | mm | 100 |
1,Modular design:
The design concept of European hoists is modularization and standardization. The core components such as motors, reducers, drum devices, limiters, brakes, and electric control boxes are relatively independent and easy to disassemble and replace.
Benefits: Easy to maintain and replace parts, shorten downtime; easy to combine and configure according to different needs (tonnage, lifting height, speed, control method); good versatility of spare parts.
2,High working level:
European hoists are usually designed to meet higher working levels (such as M4, M5, and even M6), which means that they have a longer design life and can withstand more frequent start-stop and work cycles, suitable for medium or heavy work systems.
3,Good sealing and protection:
Motors, reducers, electric control boxes, etc. usually have a good protection level (such as IP54, IP55), which can effectively prevent the intrusion of dust and splashing water, and adapt to harsh industrial environments.
Key bearings are lubricated with long-term grease or oil bath
